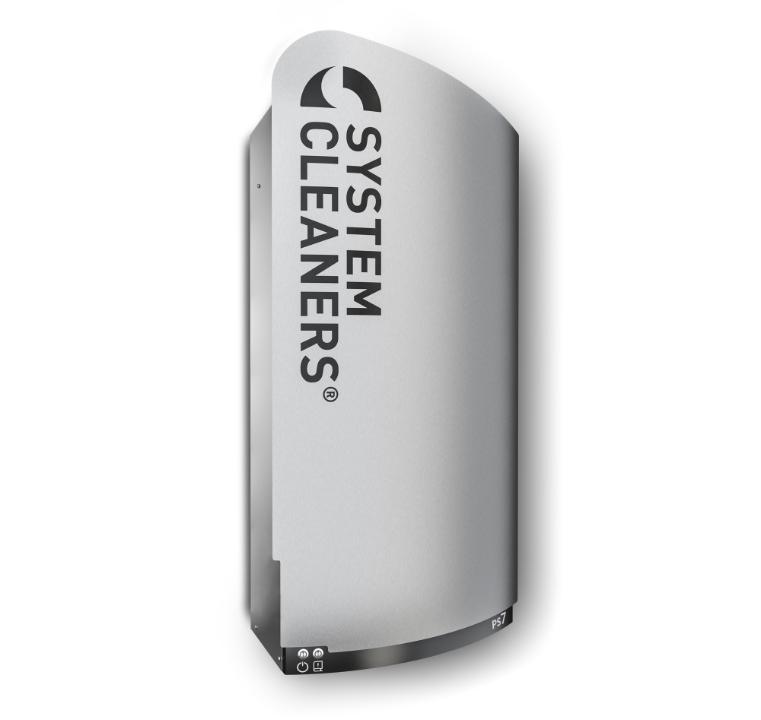

Pump station PS5 -PS7
Our frequency-controlled pump stations PS ensure a supply of boosted water at a constant pressure to your workstations.
The pump station can boost water up to 20 bar (at a 4 bar inlet pressure) and is available in two versions: PS5 supplying up to 5 workstations and PS7 supplying up to 7 workstations.
The pump stations are wall-mounted and protected by a stainless-steel cabinet, making it possible to place it anywhere, also in the processing environment.
Available in a range of different voltages, currents and threads.
- Supplies up to 7 simultaneous running workstations with boosted water
- Adjustable set-point between 5-20 bar
- Stainless-steel cabinet
- Easy to service
- Produced in high quality materials
- Energy saving Grundfos IE5 pump motors
- Frequency-controlled pump with soft start and stop
- Outlet pressure adjustment on pump
- Failure reset buttons on pump
- Integrated dry-run protection
- Pressure set-point via integrated pressure transmitter
- Temperature sensor shuts down the pump at high temperature
